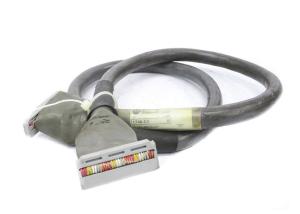

AB 1746-C9 ， SLC 500 Chassis Interconnect Cable ， 3 feet (0.91 meters)

  • 1
  • 2
  • 3

Brand Name : AB

Model Number : 1746-C9

Place of Origin : USA

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 5-8 work days

Packaging Details : New in original box

Certification : CE

Brand : AB

Model : 1746-C9

Series : SLC 500

Hardware Type : Chassis Interconnect Cable

Length : 3 feet (0.91 meters)

Analog Inputs : Thermocouple

Backplane Current (5 Volts) : 110 milliamps

Backplane Current (24 Volts) : 85 milliamps

Contact Now

AB 1746-C9 , SLC 500 Chassis Interconnect Cable , 3 Feet (0.91 Meters)

Technical Specifications for 1746-C9

Manufacturer Rockwell Automation
Brand AB
Part Number/Catalog No. 1746-C9
Series SLC 500
Hardware Type Chassis Interconnect Cable
Length 3 feet (0.91 meters)
Analog Inputs Thermocouple
Backplane Current (5 Volts) 110 milliamps
Backplane Current (24 Volts) 85 milliamps
Slots 1
Connection Hardware 1746-RT32
Slots 1
Connection Hardware 1492-CABLE010H and 1792-IFM40F
UPC 10662073521621

About 1746-C9

The AB 1746-C9 is a ribbon cable for connecting multiple chassis and controllers together. When using it to mount two 13-slot chassis in a stacked formation, with one above the other, the chassis should not be more than 5 inches apart.

For strain relief, the 1746-C9 cable has rigid shrink wrap at the end of its connectors. The rest of the cable is flexible and there should be at least 4 inches of clearance between and around the chassis that the cable is connecting.


The 1746-C9 cable is 36 inches (3 feet) in length and it is also known as chassis interconnect cable. It is ideal for connecting chassis with modular hardware that is inside an enclosure and spaced between 6 and 36 inches apart within the enclosure. The 1746-C9 connects the 1746-A4, 1746-A7, 1746-A10, or 1746-A13 chassis to each other in any combination (each chassis can be connected to the same type of chassis or to any of the others listed above.)

The 1746-C9 uses the 1746-RT32 connection hardware and has a thermocouple analog input. This ribbon cable can support 110 mA of backplane current at 5 Volts and 85 mA of backplane current at 24 Volts. The 1746-C9 only has 1 slot.



AB 1746-C9 ， SLC 500 Chassis Interconnect Cable ， 3 feet (0.91 meters)

AB 1746-C9 ， SLC 500 Chassis Interconnect Cable ， 3 feet (0.91 meters)
