GE FANUC IC697CPU771 , Single-Slot Module , Expandable Central Processing Unit

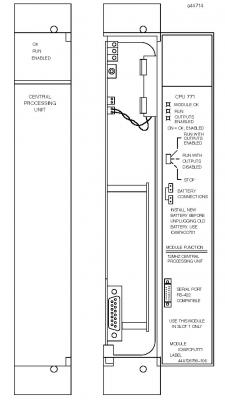

Product Description
Manufactured by GE Automation and Controls, the IC697CPU771 is a single-slot, Expandable Programmable Logic Controller CPU capable of controlling industrial machinery and processes in real-time. To communicate with I/O and “smart option” modules, a rack-mounted backplane is used.
The IC697CPU771 has a 12MHz 80C186 microprocessor capable of 0.4 microseconds per Boolean function. This device supports up to 8K analog I/O and any mixture of 2K I/O. This device also supports a variety of smart option modules, including IC697 LAN Interface modules, coprocessor modules, communications modules, IC660 and IC661 bus controller I/O modules, and discrete and analog IC697 I/O modules.
The IC697CPU771 is configured by MS-DOS or by software programs running from either Windows 95 or Windows NT operating systems. Neither DIP switches nor jumpers are used for device programming. Connect the device to a computer running the previously mentioned software by means of a serial, parallel, or Ethernet interface. For security, device configuration is password-protected.
The IC697CPU771 requires a memory expansion board to store user and program data. This expansion board is capable of holding up to 512 kilobytes of memory. Memory is maintained by an on-board CMOS battery. Initialization of the CPU by an attached programmer computer is required when installing the memory expansion board.
Operation of this device is accomplished with either a three-position control switch or by a computer running the appropriate software. For precise installation and safety guidelines, see the product manual. Ensure that rack power is disconnected before installing. The three-position switch must be in the stop position. Connect the memory expansion board. The CMOS battery may be inserted into either of the battery connection slots. Then insert the device into slot one of the rack. Reconnect power to the rack. The device is now ready to program.
About IC697CPU771
The IC697CPU771 module is an expandable CPU module for GE Fanuc Series 90-70 PLCs. Program and data memory of up to 512 kilobytes of CMOS RAM can be supported by the attachment of an expansion memory board. The CMOS expansion memory board provides RAM capacity options of 64, 128, 256, or 512 KB. The lithium battery (catalog number IC697ACC701) is located on the main CPU board. The installation of the CMOS RAM board on the IC697CPU771 module requires the initialization of the module with a programmer. The installers must refer to the relevant installation manual to ensure proper installation. The PLC rack power should be switched off prior to installation. The sequence of steps required for module installation are as follows: install the expansion memory, connect the battery to the battery connector, turn the toggle switch to "Stop" position, install the IC697CPU771 module in Slot 1, and finally turn on the PLC power.
The GE Fanuc Series 90-70 IC697CPU771 module uses an 80C186 microprocessor clocked at 12 megahertz. Up to 8000 analog I/O and a total of 2000 I/O in any mix are supported. The IC697CPU771 module is programmed with Windows or MS-DOS based software. The Windows software is compatible with the Windows 95 or Windows NT operating system. Communication between systems running the configuration software and the IC697CPU771 module can be over Ethernet or the integrated serial port. The 15-pin D-type connector provides connections to an RS-485 compatible serial port. The serial connection can be made from the serial port on the IC697CPU771 module to the serial port on the programming computer through the RS-422/RS-485 to RS-232 converter or the RS-232 to RS-422 miniconverter.
Technical Specifications
| Module Type: | Expandable Central Processing Unit |
| Number of Slots: | 1 (Single slot) |
| Current Required: | 1.1 Amps |
| Number of Points: | 2K inputs and outputs (any mix) |
| Serial Ports: | One |
| Supports: | IC660/IC661 I/O and IC697 I/O |
Technical Specifications for IC697CPU771
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Part Number | IC697CPU771 |
| Product type | CPU module |
| Compatibility | GE Fanuc 90-70 PLCs |
| Microprocessor | 80C186 |
| Clock speed | 12 megahertz |
| Maximum RAM | 512 kilobytes |
| Serial port | 1 |
| Memory battery backup | Yes |
| Analog I/O | 8000 |
