NEW ORIGINAL 5.4A 750W Servo Motor Industrial Yaskawa Servo Motor SGMPH-01BBA21
DESCRIPTION
Current: 0.89A
Volatge: 200V
Power :100W
Rated Torque: 0.318-m
Max speed: 3000rpm
Encoder: 17bit Absolute encoder
Load Inertia JL kg¡m2¢ 10−4: 0.026
Shaft: straight without key
SEPCIFICATIONS
| Manufacturer | Yaskawa / MagneTek / Saftronics / Omron |
| Series | Sigma 2 (Σ-II Series) |
| Weight | 10KG |
NOTE
- After turning the power OFF, do not touch the power terminals for 5 minutes. High voltage may remain in the Servopack.
- Avoid frequently turning the power ON and OFF. Since the Servopack has a capacitor in the power supply, a high charging current flows (for 0.2 second) when the power is turned ON. Therefore, frequently turning the power ON and OFF causes the main power devices (such as capacitors and fuses) to deteriorate, resulting in unexpected problems.
- If the Servopack is turned ON immediately after being turned OFF, a power loss alarm may arise. To prevent this, always wait for the time shown in the following table before turning the power ON again:
This sub-section provides typical examples of connecting to main host controllers. Connection to other host controllers is also possible. Connect to the host controller according to the connection examples shown below by referring to technical documentation for the host controller.
NOTE
This sub-section describes signals related to the SGDA Servopack only.
For other signals, refer to the relevant technical documentation. 2) Example of Connecting to PROGIC-8
Test Run in Two Steps
Conduct the test run when wiring is complete. Generally, conducting a test run for servo drives can be difficult , by following the two steps described below, the test run can be performed safely and correctly.
Check that the motor is wired correctly. If the motor fails to rotate properly during a servo drive test run, the cause most frequently lies in incorrect wiring. Conduct a test run for the motor without load according to the procedure described below. For customers who use a servomotor with brake, refer to Section 2.4.4 Supplemental Information on Test Run before starting a test run.
When a host controller such as a programmable controller performs position control, it may be difficult to directly input the speed reference voltage. In this case, constant voltage reference should be input once to ensure correct operation.
SIMILAR PRODUCTS
| SGMPH-02A1A-YR12 | SGMPH-02A1A-YR21 |
| SGMPH-02A1A-YR31 | SGMPH-02A1A-YR32 |
| SGMPH-02A2A-YR12 | SGMPH-02A2A-YR21 |
| SGMPH-02AAA2B | SGMPH-02AAA2C |
| SGMPH-02AAA2E | SGMPH-02AAA2E |
| SGMPH-02AAA4B | SGMPH-02AAA61 |
| SGMPH-02BAA21 | SGMPH-02BAA41 |
| SGMPH-04A1A21 | SGMPH-02BAAG161 |
| SGMPH-04A1A2B | SGMPH-04A1A2C |
| SGMPH-04A1A41 | SGMPH-04A1A4B
|
Contact person: Anna
E-mail: wisdomlongkeji@163.com
Cellphone: +0086-13534205279
CAUTION
• Conduct trial operation on the servomotor alone with the motor shaft disconnected from the machine to avoid any unexpected accidents. If it is unavoidable to perform trial operation while connected to a machine, then always make sure that an emergency stop can be immediately executed.
• Conduct trial operations on the servomotor alone, with the motor shaft disconnected from the machine to avoid accidents. Failure to observe this caution may result in injury.
Servomotors with Brakes When performing trial operation using a servomotor with a brake, use a brake interlock signal as shown below.
A brake control relay can be installed on either the AC or DC side. To reduce brake activating time, install it on the DC side. Be sure to check the brake activating time before using it. When opening/closing the brake power supply circuit relay on the DC side, be sure to provide surge protectors both near the brake coil and built in the brake power supply circuit to protect the brake coil from damage due to surge voltage.
Product Tags:
|
|

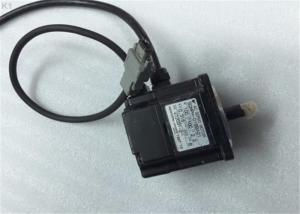

NEW ORIGINAL 5.4A 750W Servo Motor Industrial Yaskawa Servo Motor SGMPH-01BBA21 Images
|
